kev taw qhia

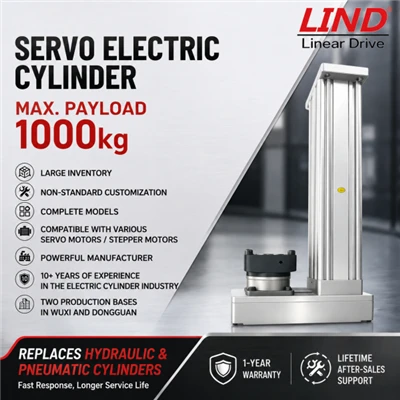

CovTig Linear Actuator Lub tog raj kheejyog ib qho txhuas lub tog raj kheej hluav taws xob uas hloov lub cev muaj zog-tsav cov lus tsa suab rau hauv cov kab ncaj nraim. Nws yog tsim los rau compact automation systems uas yuav tsum tau high positioning raug thiab ceev teb nyob rau hauv lub teeb -load industrial daim ntaub ntawv.
Technical Specifications
| Parameter | Specification |
|---|---|
| Qauv | LOJ 100 |
| Hom | Lub teeb-Lub luag haujlwm, Parallel Ncej, Aluminium Vaj Tsev |
| Max. Thrust / Tension | 2T |
| Muaj zog Stroke | 50mm ~ 1600mm |
| Pob Ntsia Hlau | φ32mm, C7 / C5 Qib |
| Coj | Standard 5mm los yog 10mm |
| Rov ua dua | ± 0.01 ~ 0.02 hli |
| Tsav Compatibility | Servo / Stepper Tsav |
| Qib tiv thaiv | IP65 (Customizable) |
| Khoom siv | Aluminium Alloy Lub Cev (Hard Anodized) |
| Kev Pabcuam Lub Neej | >10,000 km |
|
Lub cev muaj zog(W) |
1000W (3000 rpm) |
1000W (2000 rpm) |
1500W (3000 rpm) |
1500W (2000 rpm) |
||||
|
Rated torque N.m |
3.18 |
4.77 |
4.77 |
7.16 |
||||
|
Tsav tsheb hom |
Pob ntsia hlau C7 hloov / pob ntsia hlau C5 sib tsoo (default C7) |
|||||||
|
Rov ua dua qhov tseeb (mm) |
±0.02/±0.01 |
|||||||
|
Ntsia Hlau (mm) |
5 |
10 |
5 |
10 |
5 |
10 |
5 |
10 |
|
Max ceev (mm / sec) |
250 (1: 1) 83 (3: 1) 63 (4: 1) 50 (5: 1) |
500 (1: 1) 167 (3: 1) 125 (4: 1) 100 (5: 1) 83 (6: 1) 71 (7: 1) 63 (8: 1) 56 (9: 1) |
167 (1: 1) 56 (3: 1) |
333 (1: 1) 83 (4: 1) 67 (5: 1) 56 (6: 1) |
250 (1: 1) 83 (3: 1) |
500 (1: 1) 167 (3: 1) 125 (4: 1) 100 (5: 1) 83 (6: 1) |
167 (1: 1) |
333 (1: 1) 111 (3: 1) 83 (4: 1) |
|
Rated zog (N) |
3395 (1: 1) 10185 (3: 1) 13580 (4: 1) 16975 (5: 1) |
1697 (1: 1) 5091 (3: 1) 6788 (4: 1) 8485 (5: 1) 10182 (6: 1) 11879 (7: 1) 13576 (8: 1) 15273 (9: 1) |
5092 (1: 1) 15276 (3: 1) |
2546 (1: 1) 7638 (3: 1) 10184 (4: 1) 12730 (5: 1) 15276 (6: 1) |
5092 (1: 1) 15276 (6: 1) |
2546 (1: 1) 7638 (3: 1) 10184 (4: 1) 12730 (5: 1) 15276 (6: 1) |
7644 (1: 1) |
3822 (1: 1) 11466 (3: 1) 15288 (4: 1) |
|
Kev mob stroke (mm) |
10-1600 |
|||||||
|
Sensor |
Electronic magnetic hloov * 3 |
|||||||
|
Lub cev muaj zog(W) |
2000W (3000 rpm) |
2000W (2000 rpm) |
3000W (3000 rpm) |
3000W (2000 rpm) |
||||
|
Rated torque N.m |
6.37 |
9.55 |
9.55 |
14.32 |
||||
|
Tsav tsheb hom |
Pob ntsia hlau C7 hloov / pob ntsia hlau C5 sib tsoo (default C7) |
|||||||
|
Rov ua dua qhov tseeb (mm) |
±0.02/±0.01 |
|||||||
|
Ntsia Hlau (mm) |
5 |
10 |
5 |
10 |
5 |
10 |
5 |
10 |
|
Max ceev (mm / sec) |
250 (1: 1) |
500 (1: 1) 167 (3: 1) 125 (4: 1) |
167 (1: 1) |
333 (1: 1) |
250 (1: 1) |
500 (1: 1) |
250 (1: 1) |
500(1: 1) |
|
Rated zog (N) |
6800 (1: 1) |
3400 (1: 1) 10200 (3: 1) 13600 (4: 1) |
10196 (1: 1) |
5098 (1: 1) |
10196 (1: 1) |
5098 (1: 1) |
15288 (1: 1) |
7644 (1: 1) |
|
Kev mob stroke (mm) |
10-1600 |
|||||||
|
Sensor |
Electronic magnetic hloov * 3 |
|||||||
nta
Lub Teeb Tsis Tau Rigid Structure
Extruded aluminium vaj tse txo qhov hnyav ntawm lub cev thaum tswj cov txheej txheem siab nruj kom ruaj khov nyob rau hauv siab - ua haujlwm ceev.
Precision Positioning
Nruab nrog φ32 hli C7 / C5 pob ntsia hlau, xa rov ua haujlwm ntawm ± 0.01-0.02 hli rau kev tswj kom zoo thiab raug.
Strong Thrust Output
Muab txog li 2 tons ntawm thrust, haum rau xav tau kev thawb, nqa, thiab tso haujlwm.
Wide Stroke Flexibility
Txhawb kev mob stroke ntev los ntawm 50 hli mus rau 1600 hli, hloov mus rau ob qho tib si compact thiab ntev - daim ntawv thov kev mus ncig.
Qhov chaw -Txuag Tsim
Parallel motor mounting structure minimizes installation space, zoo tagnrho rau compact automation systems.
Kev sib koom ua ke yooj yim
Standardized interfaces (flange, ko taw mount, clevis) pab kom ceev installation rau hauv cov khoom tshiab lossis uas twb muaj lawm.
Txhim khu kev tiv thaiv
Muab IP65 tiv thaiv plua plav thiab dej, haum rau kev lag luam ib puag ncig.
LIND Standard installation txoj kev thiab daim duab loj
CB: rear ob tus pin pob ntseg
CA: Ib leeg muag pob ntseg
FB: Tsheb kauj vab
TC: rear pob ntseg qag lub rooj
LA: Kab rov tav bearing rooj
FG: Pem hauv ntej flange nrog phau ntawv qhia postt
FA: Pem hauv ntej flange
FTC: Pem hauv ntej pob ntseg qag lub rooj
J: Frontjoint bearing
Y: Y-zoo li pob khawm
SP: siab sensor
daim ntawv thov
- 3C Electronics: PCB tuav, me me -ib feem precision sib dhos, dispensing, thiab kuaj.
- Automation & Ntim: Lub teeb -load precision pressing, sorting, transferring, and gate control.
- Cov Khoom Siv Kho Mob & Laboratory: Kev soj ntsuam tsis siv neeg thiab qhov tseeb qhov chaw rau kev sim tshuab.
vim li cas xaiv peb
- Tus nqi -Kev ua tau zoo:Muab siab precision thiab efficiency ntawm tus nqi sib tw, optimizing tag nrho cov nqi ntawm cov tswv cuab.
- Flexible Customization:Txhawb customized stroke, thrust, thiab lub cev muaj zog configurations rau tej daim ntawv thov kev xav tau.
- Kev pab txhawb nqa:Muab kev txhawb nqa kev tshaj lij rau kev teeb tsa, commissioning, thiab tom qab - kev muag khoom.
- Pov thawj Reliability:Engineered nrog siab - cov khoom zoo kom ruaj khov, ua haujlwm ntev -.
FAQ
Q1: Nws puas tuaj yeem hloov pneumatic lossis hydraulic thooj voos kheej kheej?
A: Yog. Lub tog raj kheej hluav taws xob muab kev ua haujlwm huv, kev tswj hwm kev tswj hwm, thiab kev ua haujlwm siab dua, ua rau lawv muaj zog ntxiv rau pneumatic lossis hydraulic systems hauv automation hloov khoom dua tshiab.
Q2: Hom motors twg tau tshaj?
Lub tog raj kheej yog sib xws nrog 130 thav duab servo thiab stepper motors los ntawm cov hom loj (Delta, Mitsubishi, Panasonic, Siemens, thiab lwm yam), ua kom muaj kev sib txuam tsis sib haum rau hauv cov tshuab automation uas twb muaj lawm.
Q3: Nws puas txhawb kev hloov kho rau OEM tej yaam num?
A: Yog. Stroke ntev, mounting qauv, lub cev muaj zog configuration, thiab tswj interfaces tuaj yeem ua raws li cov khoom siv tshwj xeeb kev sib koom ua ke.
