kev taw qhia

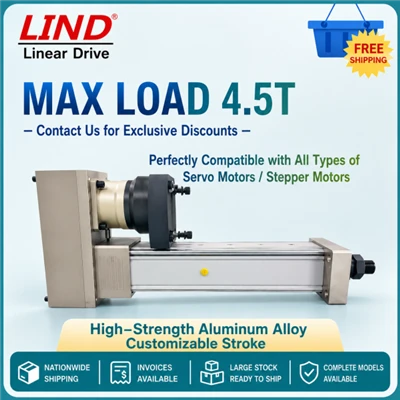

Linear Electric Lub tog raj kheejyog servo-tsav tawm linear actuator uas hloov hluav taws xob hluav taws xob rau hauv cov kab ncaj nraim. Nws yog dav siv rau kev ua haujlwm automation xws li nias, tso, sib dhos, thiab tuav cov khoom siv, muab kev ua haujlwm zoo rau hydraulic thiab pneumatic systems.
Cov ntsiab lus tseem ceeb
|
Khoom Specification |
Tus nqi |
Tus nqi tseem ceeb |
|---|---|---|
|
Max Thrust / Tension |
3.5T |
Txhawb nqa hnyav -load tej yam kev mob, ntsib 3.5 tuj load haujlwm |
|
Muaj zog Stroke |
50 ~ 2000 hli |
Ntau yam strokes muaj los hloov kho rau cov khoom siv sib txawv |
|
Pob Ntsia Hlau |
Ø32 Pob Ntsia Hlau (Qib C7 / C5) |
High - kis tau tus mob precision, ua kom muaj kev ruaj ntseg |
|
Ntsia Hlau |
10 mm |
Sib npaug ceev thiab thrust, haum rau feem ntau muaj xwm txheej |
|
Rov ua qhov tseeb qhov tseeb |
± 0.010.02 hli |
Micron -qib qhov chaw, ua tau raws siab - cov qauv kev ua haujlwm raug |
|
Max Input Ceev |
3000 RPM |
Cov lus teb ceev ceev, txhim kho cov cuab yeej ua haujlwm zoo |
|
Tau tshaj lub cev muaj zog |
Servo lub cev muaj zog |
Direct-txuas tsim, yooj yim installation txheej txheem |
|
Position Sensing |
Sib nqus hloov |
Kev txwv nruj, ua kom muaj kev nyab xeeb ntawm kev ua haujlwm |
|
Lub cev muaj zog(W) |
1000W (3000 rpm) |
1000W (2000 rpm) |
1500W (3000 rpm) |
2000W (2000 rpm) |
|
Rated torque N.m |
3.18 |
4.77 |
7.16 |
9.55 |
|
Tsav tsheb hom |
Pob ntsia hlau C7 hloov / pob ntsia hlau C5 sib tsoo (default C7) |
|||
|
Rov ua dua qhov tseeb (mm) |
±0.02/±0.01 |
|||
|
Ntsia Hlau (mm) |
10 |
10 |
10 |
10 |
|
Max ceev (mm / sec) |
50 (10: 1) 42 (12: 1) 31 (16: 1) |
48 (7: 1) 42 (8: 1) 37 (9: 1) 33 (10: 1) |
83 (4: 1) 67 (5: 1) 48 (7: 1) |
83 (4: 1) 67 (5: 1) |
|
Rated zog (N) |
16970 (10: 1) 20364 (12: 1) 27152 (16: 1) |
17822 (7: 1) 20368 (8: 1) 22914 (9: 1) 25460 (10: 1) |
15288 (4: 1) 19110 (5: 1) 26754 (7: 1) |
20391 (4: 1) 25490 (5: 1) |
|
Ua haujlwm stroke (mm) |
10-1600 |
|||
|
Sensor |
Electronic magnetic hloov * 2 |
|||
|
Lub cev muaj zog(W) |
3000W (2000 rpm) |
3000W (1500 rpm) |
4500W (1500 rpm) |
5500W (1500 rpm) |
||
|
Rated torque N.m |
14.32 |
19.1 |
28.65 |
35.01 |
||
|
Tsav tsheb hom |
Pob ntsia hlau C7 hloov / pob ntsia hlau C5 sib tsoo (default C7) |
|||||
|
Rov ua dua qhov tseeb (mm) |
±0.02/±0.01 |
|||||
|
Ntsia Hlau (mm) |
10 |
10 |
10 |
|||
|
Max ceev (mm / sec) |
111 (3: 1) |
250 (1: 1) |
250 (1: 1) |
|||
|
Rated zog (N) |
22900 (3: 1) |
15293 (1: 1) |
18688 (1: 1) |
|||
|
Ua haujlwm stroke (mm) |
10-1600 |
|||||
|
Sensor |
Electronic magnetic hloov * 2 |
|||||
Vim li cas Pob Ntsia Hlau Hloov Cov Ntsia Hlau?
Muaj ntau yam tsawg-kawg hluav taws xob lub tog raj kheej txais cov ntsia hlau txhuas, thaum peb cov khoom tau nruab nrog siab- cov pob ntsia hlau precision, nrog kev hloov kho kev ua tau zoo:
Ua tau zoo dua: Pob ntsia hlau txais dov kev sib txhuam, nrog kev sib kis tau zoo tshaj 90%; txhuas ntsia hlau yog zawv zawg kev sib txhuam nrog efficiency tsuas yog 30% -50%, loj fais fab pov tseg.
Zoo dua Precision & Repeatability: C5/C7 qib pob ntsia hlau txhawb micron- qib rov ua dua; txhuas cov ntsia hlau muaj qhov sib txhuam loj thiab hnav yooj yim, ua rau tsis zoo qhov tseeb thiab ceev attenuation.
Lub neej ua haujlwm ntev: Rolling kev sib txhuam ua rau yuav luag tsis hnav, nrog kev ruaj siab precision; cov ntsia hlau lead yog yooj yim rau cua sov thiab hnav tom qab lub sijhawm ua haujlwm ntev -, yuav tsum tau hloov ntau zaus.
Ua haujlwm yooj yim: Pob ntsia hlau khiav ruaj khov yam tsis muaj jitters thiab daig tshwm sim, haum rau siab - nrawm thiab siab - qhov tseeb automation scenarios.
Vim li cas Direct Drive Structure?
Sib txawv los ntawm cov tsoos tsav tsis ncaj (iav / siv tsav) hluav taws xob lub tog raj kheej, peb tus qauv tsav ncaj qha coj cov kev txhim kho tseem ceeb:
Teb sai dua: Tsis muaj kev sib kis nruab nrab ntawm qhov sib txawv, xoom ncua hauv lub zog tso zis, paub qhov pib tam sim thiab nres.
Kev ruaj ntseg siab dua: Ua kom tsis txhob muaj kev vibration thiab qhov sib txawv ntawm qhov sib txawv los ntawm cov iav clearance thiab siv xoob xoob.
Tus nqi poob qis: Txo cov qhov tsis zoo xws li cov iav thiab cov hlua khi, cov ntsiab lus tsis ua haujlwm tsawg dua thiab cov cuab yeej siv tau ntev dua.
Kev txhim kho yooj yim dua: Integrated modular tsim, yooj yim thiab ceev installation, txuag cov khoom siv debugging lub sij hawm.
Vim li cas Fold-rov qab Tsim (Yeem Customization)?
Txhawm rau hloov mus rau qhov txwv qhov chaw teeb tsa ntawm cov cuab yeej tshwj xeeb, peb txhawb kev kho kom haum fold-rov qab (fold- hom) qauv, nrog qhov tshwj xeeb zoo:
Qhov chaw -Txuag: Lub fold-rov qab qauv ua kom luv luv tag nrho ntev ntawm lub tog raj kheej, zoo haum rau qhov nqaim qhov teeb meem.
Flexible Layout: Realizes diversified spatial installation, rhuav lub layout txwv ntawm ncaj- hom hluav taws xob thooj voos kheej kheej.
Tsis muaj kev poob haujlwm: Thaum txo qhov ntim, nws tuav cov thawj siab thrust thiab siab precision, nrog ruaj khov kev ua tau zoo.
nta
Direct -Drive Structure
Adopts a direct-connect motor structure with no intermediate transmission, it achieves >90% kev sib kis tau zoo, ua kom cov lus teb sai dua piv rau cov qauv tsim.
High Thrust Output
Xa mus txog 3.5 tons ntawm kev thawb / rub lub zog, ua rau nws zoo tagnrho rau kev thov xws li xovxwm- haum, tshuaj xyuas, thiab tuav cov khoom siv.
Precision Positioning
C7 / C5 qib pob ntsia hlau nrog servo tswj xyuas kom meej thiab meej zog (repeatability ntawm ± 0.01-0.02 hli).
Anti-Rotation Design
Ua-hauv kev tiv thaiv- kev sib hloov tshuab tiv thaiv kev sib txawv ntawm tus pas nrig, ua kom muaj kev ruaj ntseg thiab kev ntseeg siab nyob rau hauv siab -load thiab ntev- lub voj voog ua haujlwm.
Integrated Safety Features
Sib nqus txwv keyboards muab cov lus qhia txog qhov tseeb, thiab ua tau -nyob rau hauv ~ 10 mm buffer cheeb tsam tiv thaiv kev sib tsoo tshuab.
Kev kho qis
Hluav taws xob tsav tshem tawm cov roj to thiab txo cov haujlwm ua haujlwm.
daim ntawv thov
Automotive Manufacturing
Cav Cheebtsam nias-fitting, chassis riveting, thiab lub cev pwm actuation.
Tsim los tuav ob qho tib si loads siab thiab precision yuav tsum.
Electronic Assembly
Precision bonding, chip testing, thiab roj teeb module sib dhos.
Ua tiav micron -qib qhov chaw raug.
Automated Ntau Lawm Kab
Soj ntsuam thiab tuav, workpiece flipping, thiab positioning thiab actuation cov hauj lwm.
Haum rau ntau- txheej txheem synchronized ua haujlwm.
General Machinery
Qhov zoo tshaj plaws kev xaiv rau hydraulic systems.
Siv rau cov cuab yeej fixture actuation thiab kuaj cov ntawv thov kom muaj zog- txhim kho kom zoo.
Customization & Kev Pabcuam Txhawb
- Stroke xaiv muaj los ntawm50-1600 hli, nrog yeemC5- qib high-precision pob screwsraws li qhov yuav tsum tau ua ntawm load thiab raug.
- Txhawb customization ntawmservo motor hom thiab mounting configurationskom haum cov kab ntau lawm.
- Wuxi LIND Automation muabkawg-rau- xaus kev txhawb nqa, suav nrog kev taw qhia kev xaiv, kev teeb tsa thiab kev ua haujlwm, thiab tom qab - kev muag khoom.
- Cov kev daws teeb meem hauv cheeb tsam muaj rau kev lag luam txawv teb chaws xws li Nyab Laj, kom ntseeg tau tias qhov kev xa tawm tau zoo.
FAQ
Q1: Dab tsi yog qhov zoo ntawm hydraulic thooj voos kheej kheej?
A: Lub tog raj kheej hluav taws xob muab qhov tseeb ntawm qhov chaw siab dua, kev tswj xyuas kev ua haujlwm, thiab kev siv hluav taws xob zoo dua, thaum tshem tawm cov roj to thiab txo cov nqi tu.
Q2: Cov khoom puas tuaj yeem hloov kho rau kev siv sib txawv?
A: Yog. Stroke ntev, thrust quab yuam, mounting hom, thiab lub cev muaj zog configuration tuaj yeem hloov kho kom tau raws li qhov project tshwj xeeb thiab kev xav tau kev koom ua ke.
Q3: Nws puas sib xws nrog ntau hom servo lub cev muaj zog?
A: Yog. Cov qauv tsim qauv tso cai rau kev sib raug zoo nrog feem ntau cov servo motors thiab cov tshuab tswj, ua kom yooj yim rau kev sib koom ua ke.
Q4: Yuav tsum tau kho dab tsi?
A: Kev tshuaj xyuas tsis tu ncua ntawm cov ntsia hlau, lubrication, thiab cov khoom siv hluav taws xob feem ntau yog txaus los xyuas kom meej lub neej ua haujlwm ntev.
